Heave-Duty Adjustable Legs
(Heavy-Duty Stainless Steel Adjustable Equipment Legs)

Our heavy-duty Adjustable legs have a strong net load-bearing capacity up to 800kgs. They are designed to support and adjust heavy-duty commercial kitchen equipment such as refrigerators, electric furnaces, dishwashers, ice machines, and more.

Generally, the top is mounted with a threaded stud. There are a variety of threaded studs available such as M20, M16 and M12 to suit your commercial kitchen equipment needs.

The top can also be furnished with a galvanized mounting plate, stainless steel plate or welded mounting plate. According to your individual needs, we can design and produce fully customized mounting plates with your desired materials, dimensions, and hole diameters. The foot of the equipment leg can be flexibly designed with a stainless steel hexagonal foot, plastic cone foot and plastic round foot.

Heavy-duty equipment legs are made of stainless steel 201/304 with 1.0mm wall thickness. The tubing diameters are commonly 32+25mm, 40+32mm, 50.8+42mm and 63+56mm. The adjustment range is 20-100mm.

Recommended Products
    1. Heave-Duty Adjustable Legs
    2. Model: A105621
      Material: Stainless steel 201/304
      Tubing diameter: 25mm
      Top: Mounting stud
      Foot: Hexagonal
      Load ratings: 300kgs
    1. Heave-Duty Adjustable Legs
    2. Model: A125X-01
      Material: Stainless steel 201/304
      Tubing diameter: 32+25mm
      Load ratings: 500kgs
    1. Heave-Duty Adjustable Legs
    2. Model: A125X-02
      Material: Stainless steel 201/304
      Tubing diameter: 32+25mm
      Load ratings: 500kgs
    1. Heave-Duty Adjustable Legs
    2. Model: A125X-03
      Material: Stainless steel 201/304
      Tubing diameter: 32+25mm
      Load ratings: 500kgs
    1. Heave-Duty Adjustable Legs
    2. Model: A951
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Mounting stud
      Foot: Hexagonal
      Load ratings: 600kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A952
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Mounting stud
      Foot: Round with 5mm plastic base
      Load ratings: 600kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A954
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A9510
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Mounting stud
      Foot: Round with plastic base
      Load ratings: 600kgs
      Adjustment range: 20-60mm

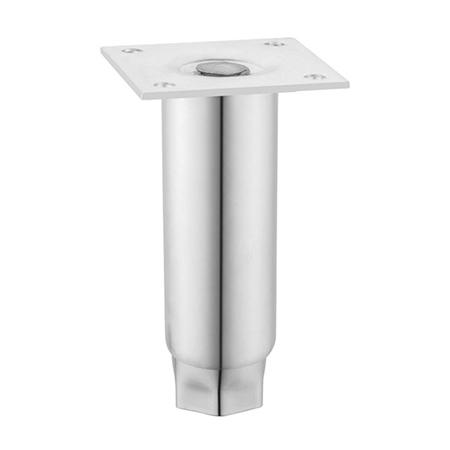

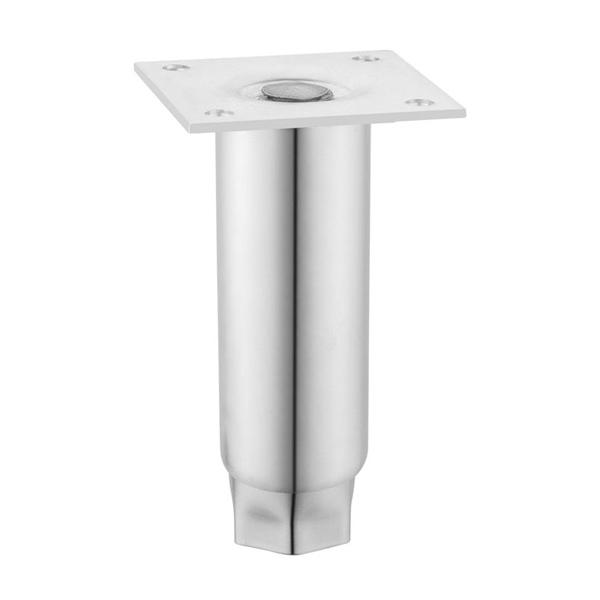

    1. Heave-Duty Adjustable Legs
    2. Model: A93111
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Galvanized square plate
      Foot: Hexagonal
      Load ratings: 600kgs
      Adjustment range: 20-60mm

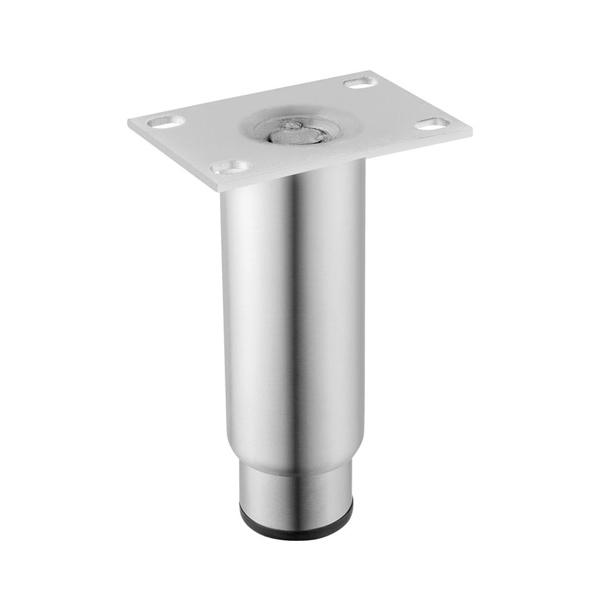

    1. Heave-Duty Adjustable Legs
    2. Model: A93112
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Galvanized square plate
      Foot: Round with 5mm plastic base
      Load ratings: 600kgs
      Adjustment range: 20-60mm

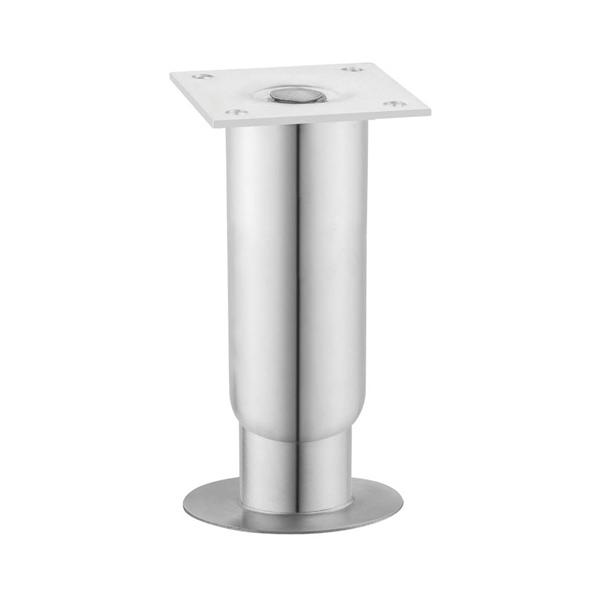

    1. Heave-Duty Adjustable Legs
    2. Model: A93114
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Galvanized square plate
      Foot: SS flange base
      Load ratings: 600kgs
      Adjustment range: 20-60mm

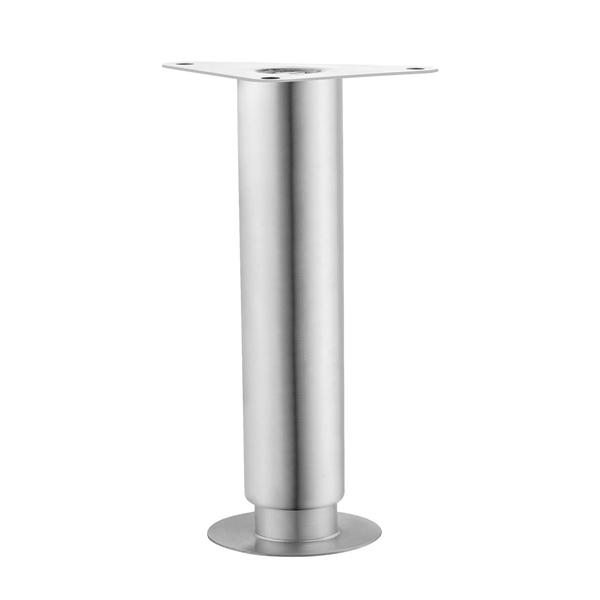

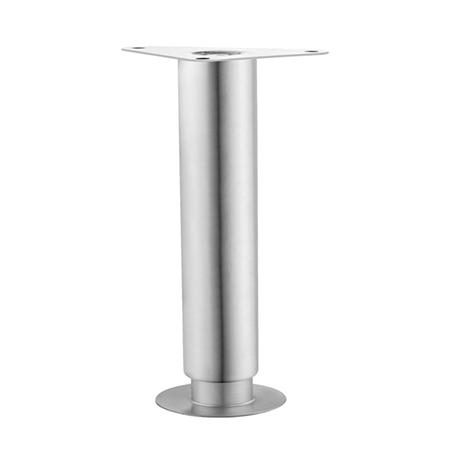

    1. Heave-Duty Adjustable Legs
    2. Model: A93314(300)
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Galvanized triangle plate
      Foot: SS flang base
      Load ratings: 600kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A931110
      Material: Stainless steel 201/304
      Tubing diameter: 40+32mm
      Top: Galvanized square plate
      Foot: plastic cone base
      Load ratings: 600kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A13132
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Galvanized square plate
      Foot: Round with 5mm plastic base
      Load ratings: 800kgs
      Adjustment range: 20-60mm

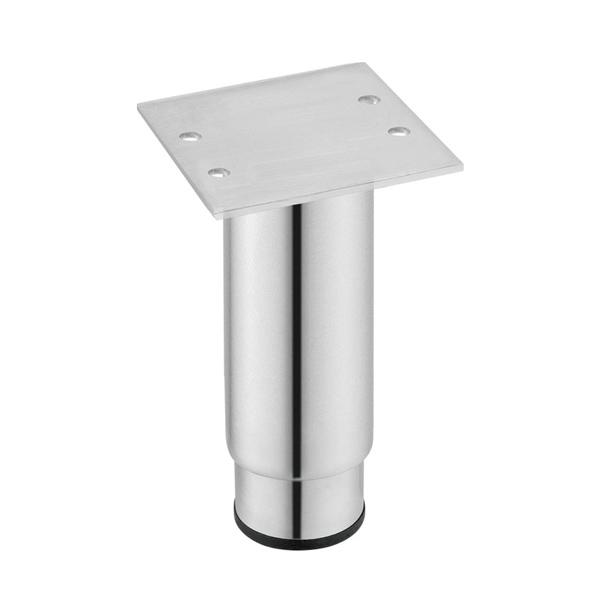

    1. Heave-Duty Adjustable Legs
    2. Model: A12112
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: SS square plate
      Foot: Round with 5mm plastic base
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A131113(B)
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: Hexagonal
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A131114
      Material: SS#201/SS#304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: Round plastic foot
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A131110
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: Plastic flanged toe
      Load ratings: 800kgs
      Adjustment range: 20-60mm

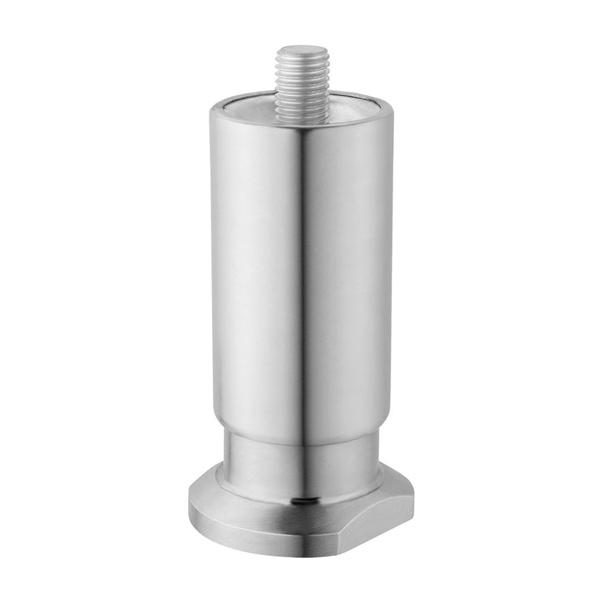

    1. Heave-Duty Adjustable Legs
    2. Model: A13114
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: SS flang base
      Load ratings: 800kgs
      Adjustment range: 20-60mm

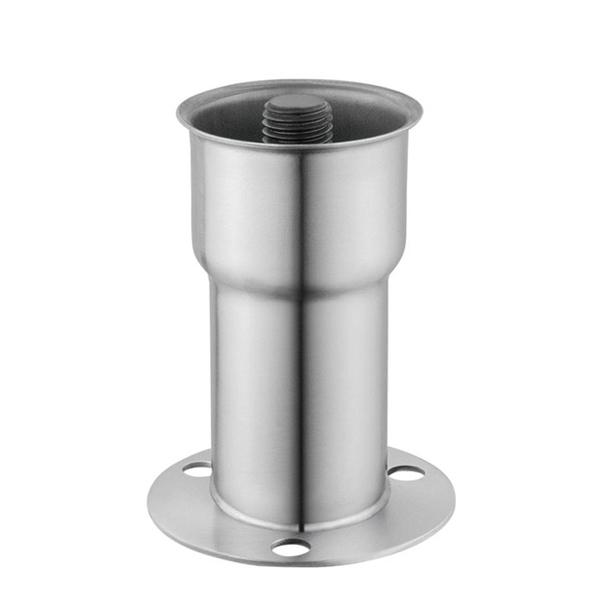

    1. Heave-Duty Adjustable Legs
    2. Model: A1(3+9)3
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Flared, mounting stud
      Foot: SS flang base
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A181
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: Hexagonal
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A1(1+5)2
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud and welded mounting plate
      Foot: 5mm Round plastic foot
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A121217-150
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: SS square plate
      Foot: Hexagonal
      Load ratings: 800kgs
      Adjustment range: 20-60mm

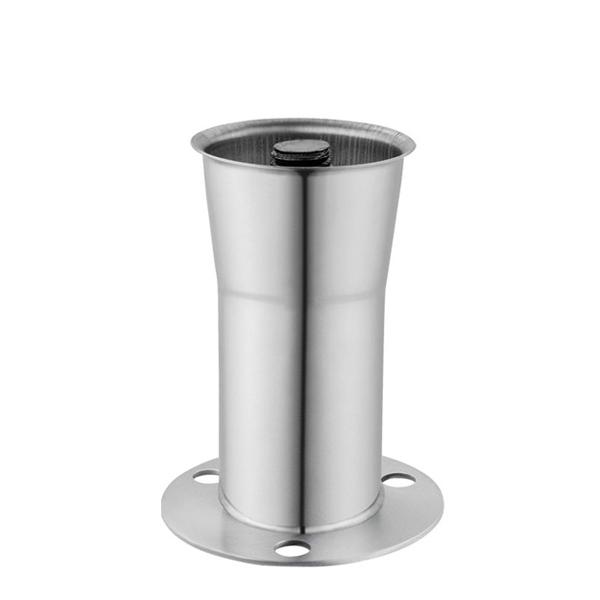

    1. Heave-Duty Adjustable Legs
    2. Model: A1(7+9)3
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Flared top and flush stud
      Foot: SS flang base
      Load ratings: 800kgs
      Adjustment range: 20-60mm

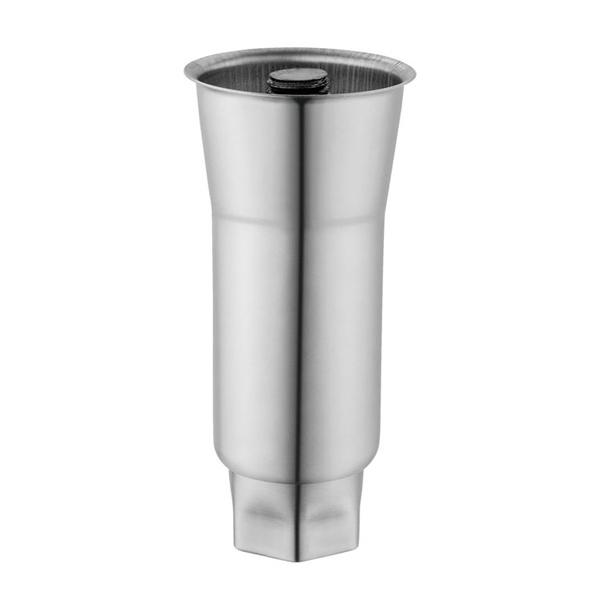

    1. Heave-Duty Adjustable Legs
    2. Model: A1(7+9)1
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Flared top and flush stud
      Foot: Hexagonal
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A1(7+9)10
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Flared top and flush stud
      Foot: Plastic flanged toe
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A1714
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Flared top and flush stud
      Foot: Round plastic foot
      Load ratings: 800kgs
      Adjustment range: 20-60mm

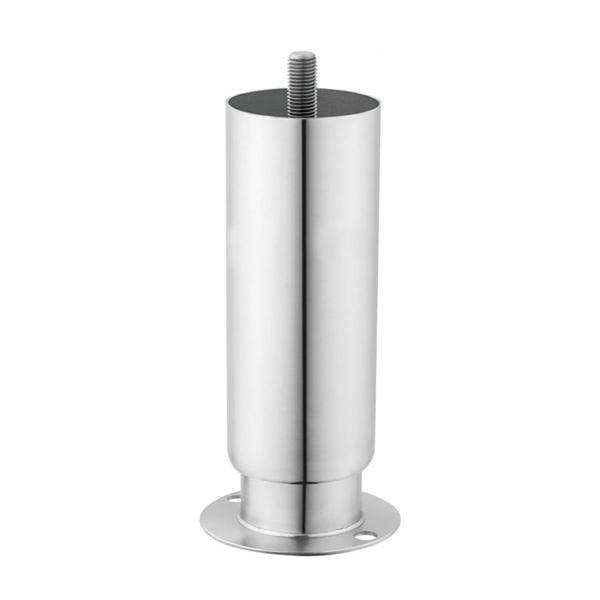

    1. Heave-Duty Adjustable Legs
    2. Model: A153
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: SS flang
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A151
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: Hexagonal
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A152
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: 5mm Round plastic foot
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A1510
      Material: Stainless steel 201/304
      Tubing diameter: 50.8+42mm
      Top: Mounting stud
      Foot: Plastic flanged toe
      Load ratings: 800kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A11516
      Material: Stainless steel 201/304
      Tubing diameter: 63+56mm
      Top: Threaded stud
      Foot: Stainless steel base
      Load ratings: 1000kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A11515.8
      Material: Stainless steel 201/304
      Tubing diameter: 63+56mm
      Top: Mounting stud
      Foot: 8mm Octagon plastic base
      Load ratings: 1000kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A1152.5
      Material: Stainless steel 201/304
      Tubing diameter: 63+56mm
      Top: Mounting stud
      Foot: 5mm Round plastic foot
      Load ratings: 1000kgs
      Adjustment range: 20-60mm
    1. Heave-Duty Adjustable Legs
    2. Model: A1151.2
      Material: Stainless steel 201/304
      Tubing diameter: 63+56mm
      Top: Mounting stud
      Foot: Octagon
      Load ratings: 1000kgs
      Adjustment range: 20-60mm

Here at Dongming Industry and Trade, our factory is outfitted with many pieces of advanced manufacturing equipment to carry out the cutting, stamping, forging, welding, forming, and polishing of your stainless steel products. Our experienced team of inspectors maintains tight control over every step of the production process to ensure a high level of quality. Combining with this high-performance factory with our high-level experience, we have a recipe for success in this industry, enabling us to supply quality custom stainless steel parts at competitive prices.

All our products are RoHS, UL, and SGS certified. With hard work, superior quality, and dependable service, we have achieved ISO9001, EMC, and 5S (Sort, Set in order, Shine, Standardize, Sustain) certifications.
