Stainless Steel Adjustable Leg

Constructed from stainless steel 201/304, our adjustable equipment legs can support and elevate your commercial kitchen equipment to the proper height. This ensures safe and secure performance.

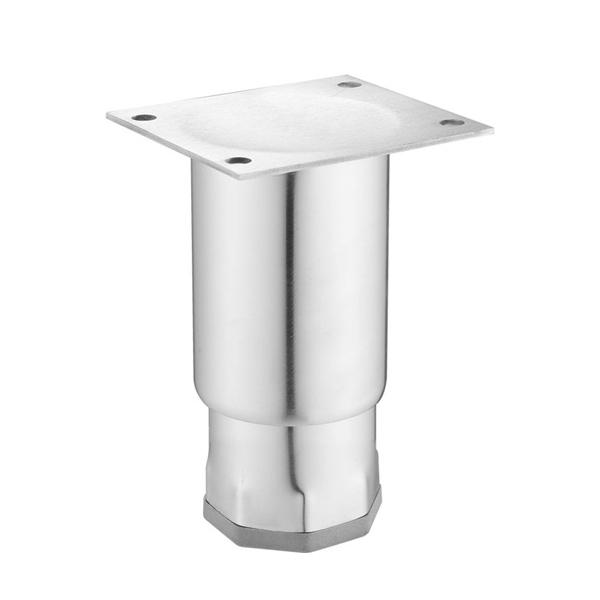

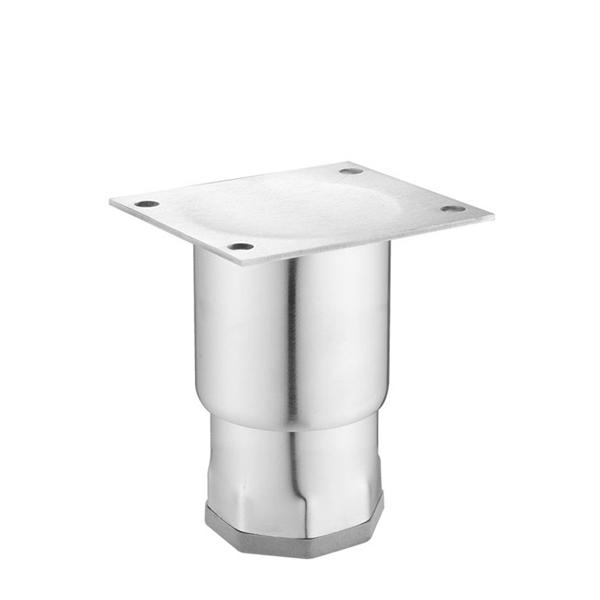

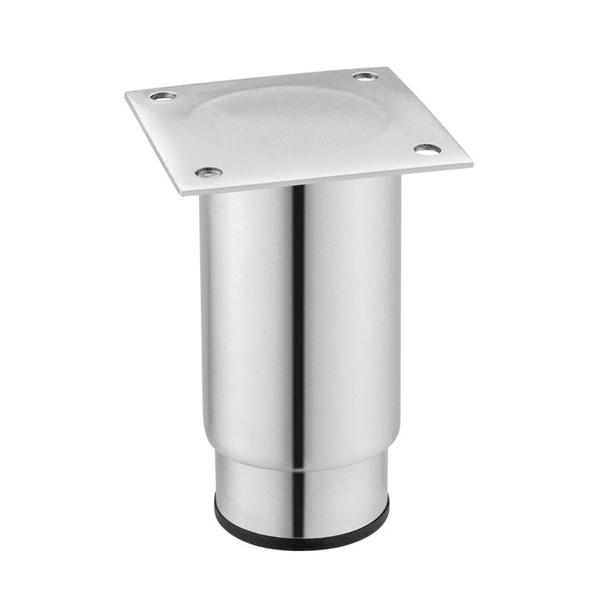

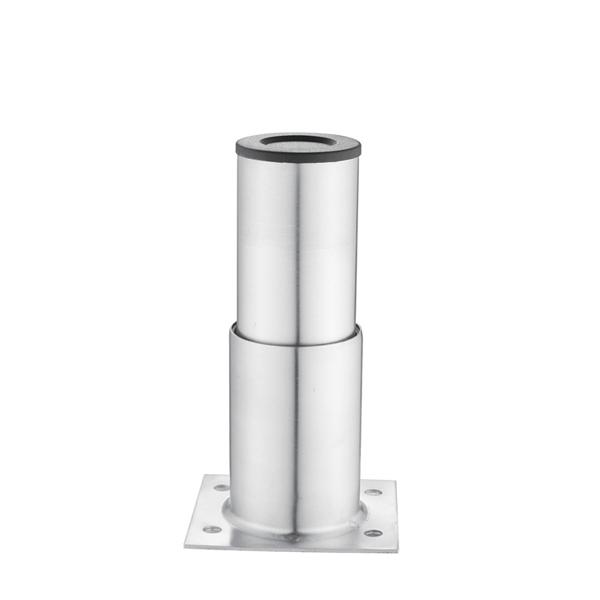

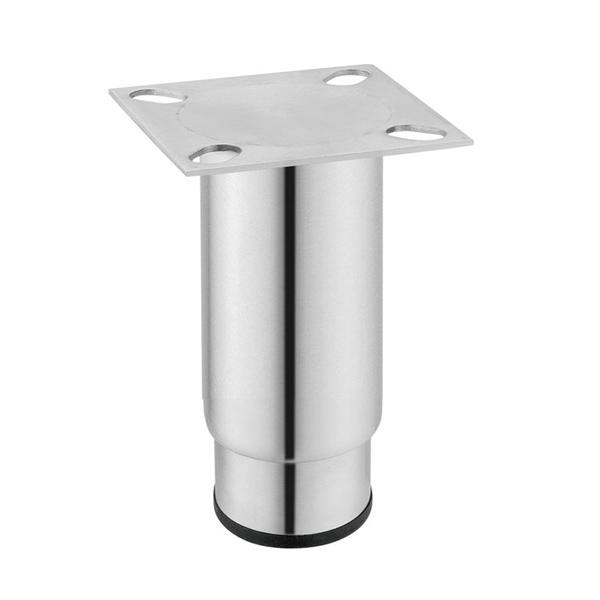

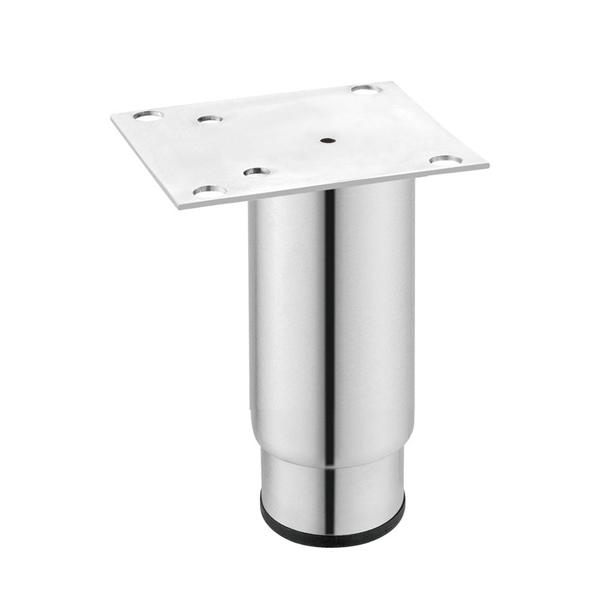

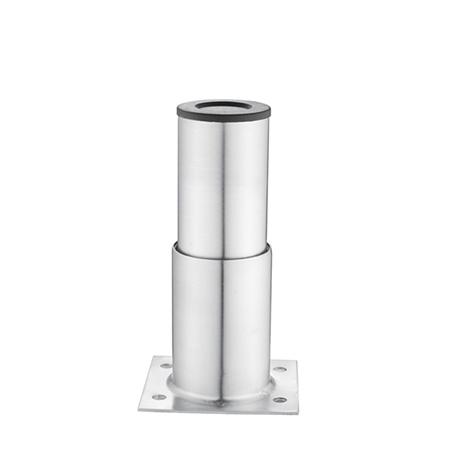

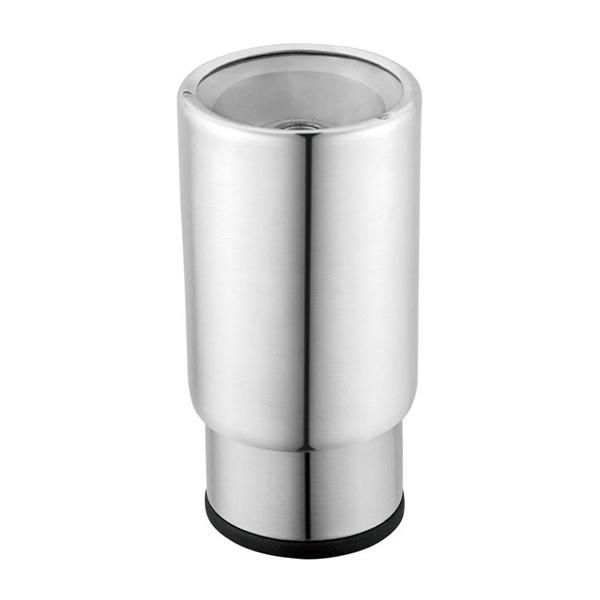

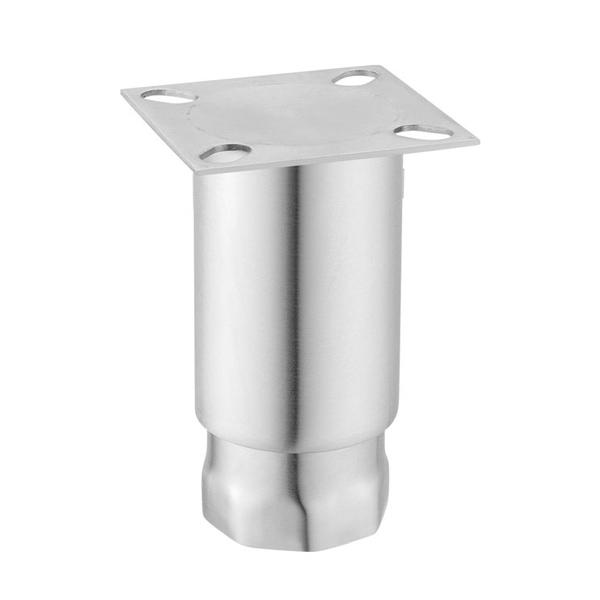

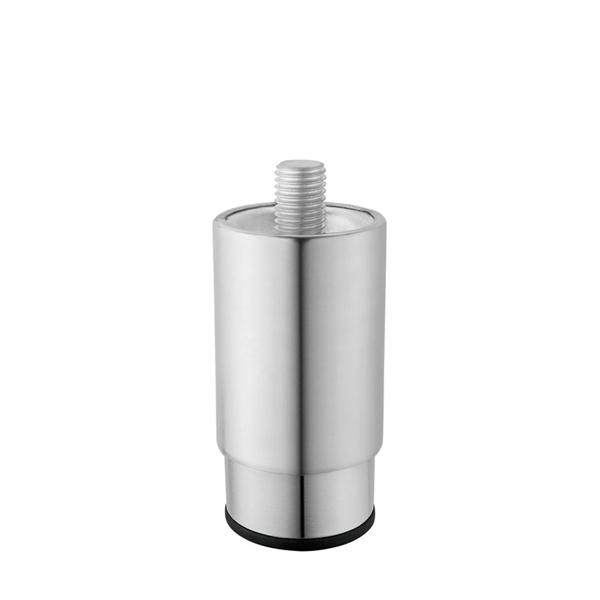

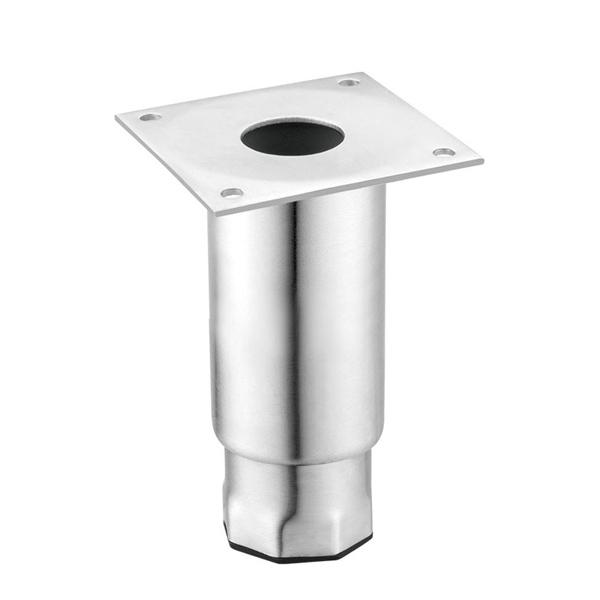

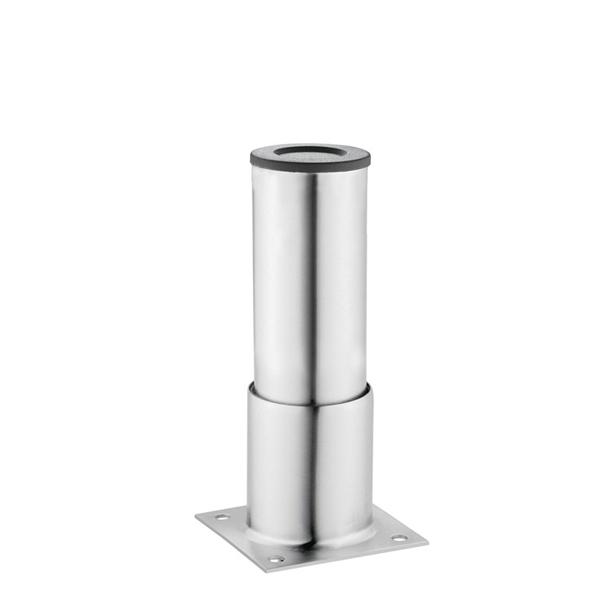

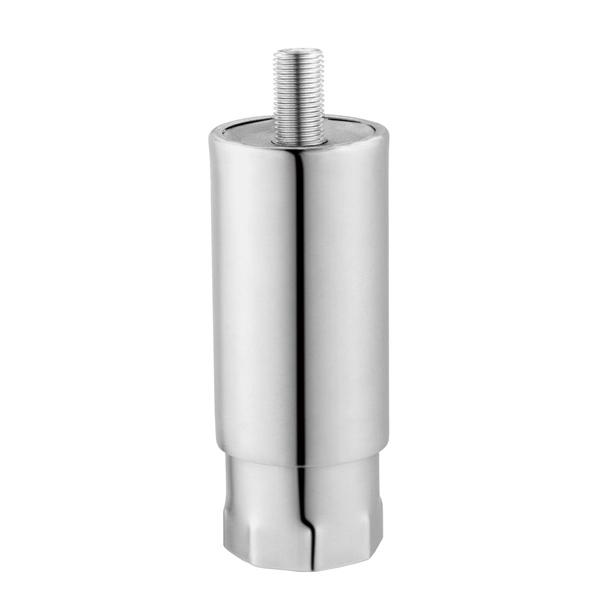

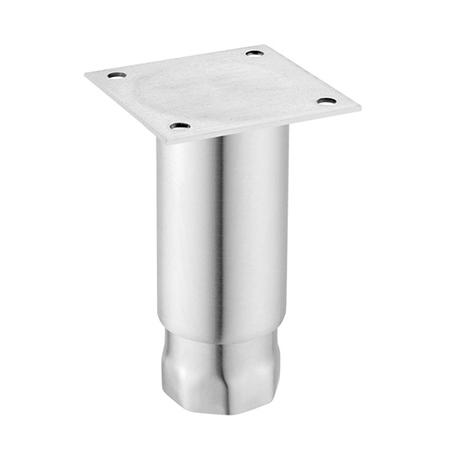

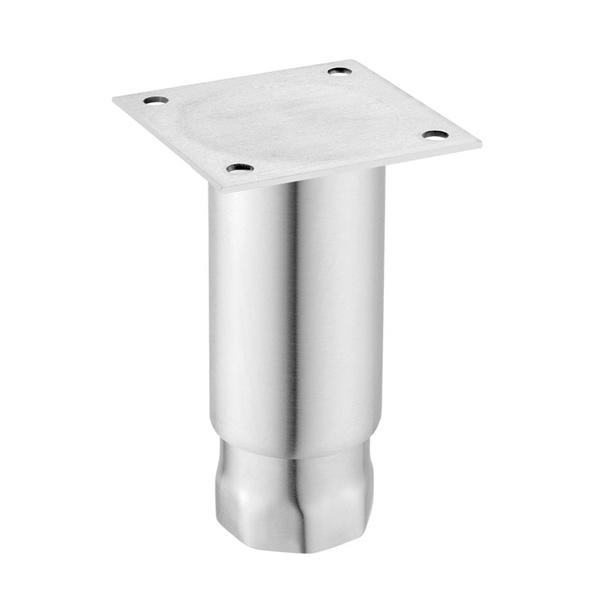

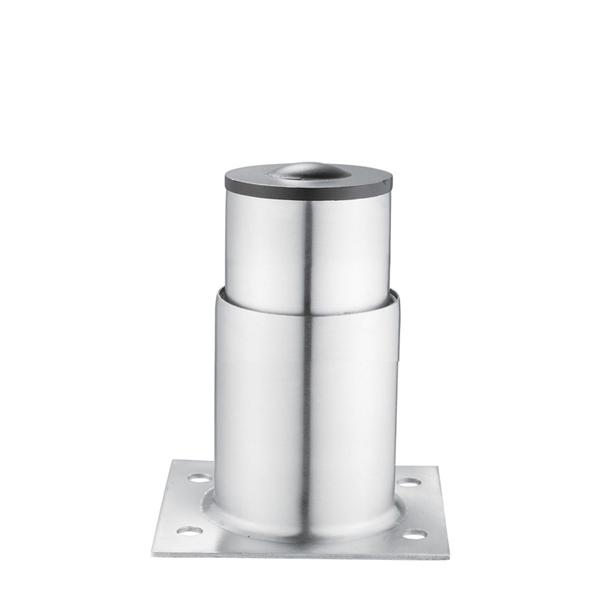

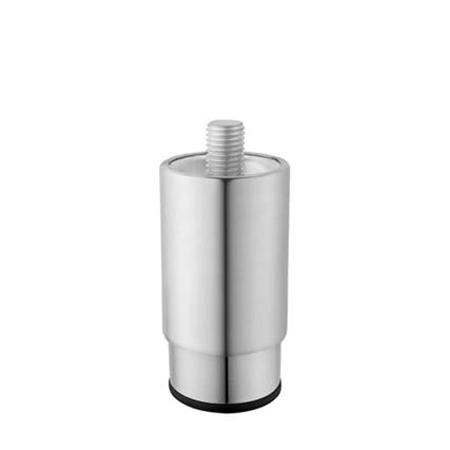

These equipment legs feature a hollow structure, making them lightweight with a strong load capacity. They are internally threaded with a nylon insert. Typically, the top of the equipment is furnished with a welded mounting plate or threaded stud. The common type of threaded stud provided is 17mm (nut size) x M10 (internal thread). The standard plate dimension is 89x89x2mm and hole diameter 6/8mm. We can offer custom mounting plates with your desired materials, dimensions, and hole diameters.

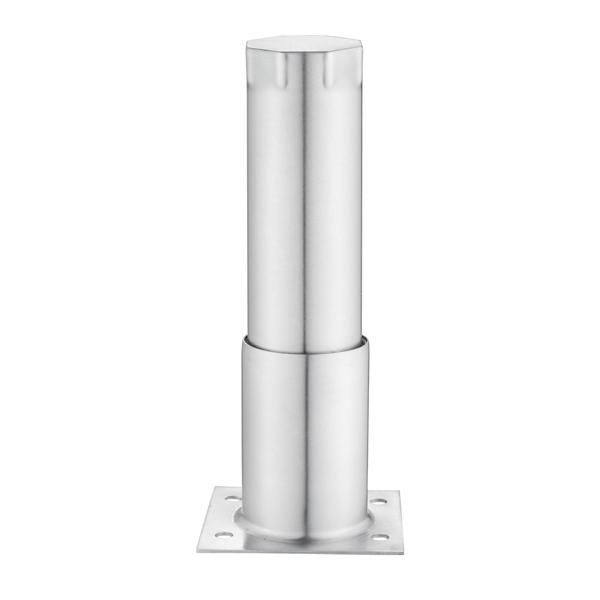

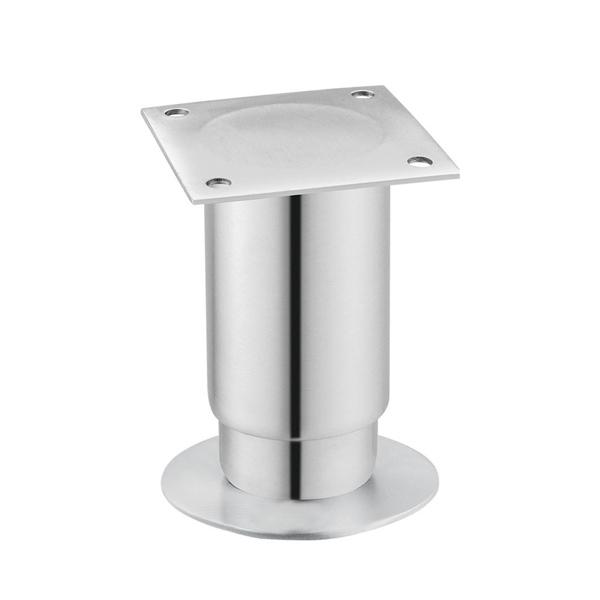

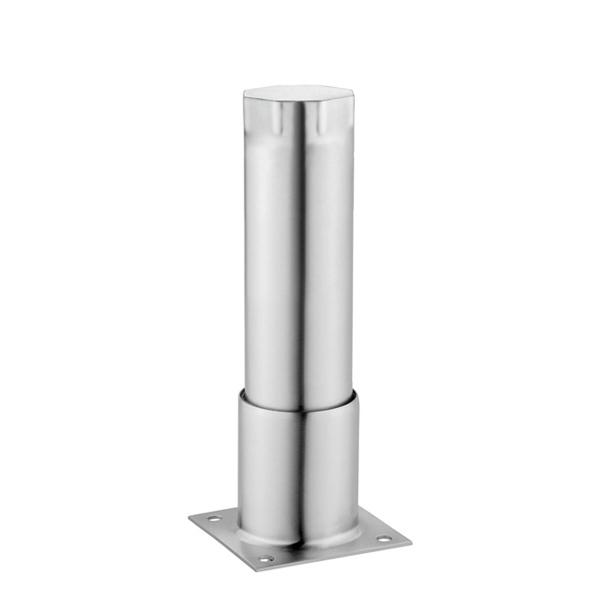

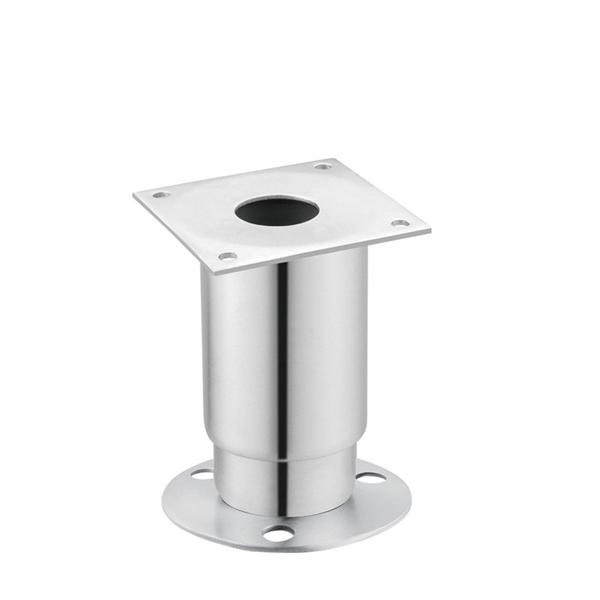

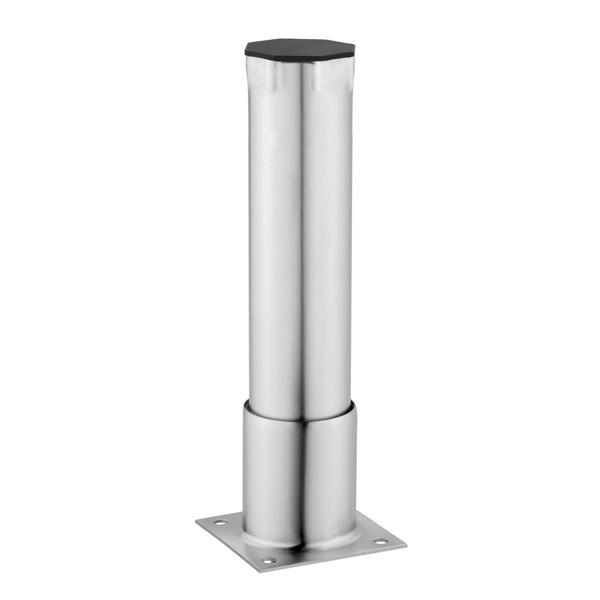

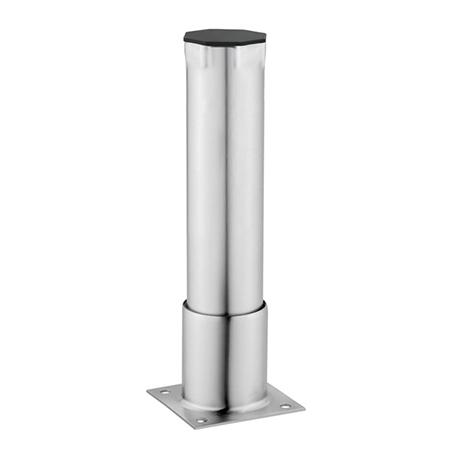

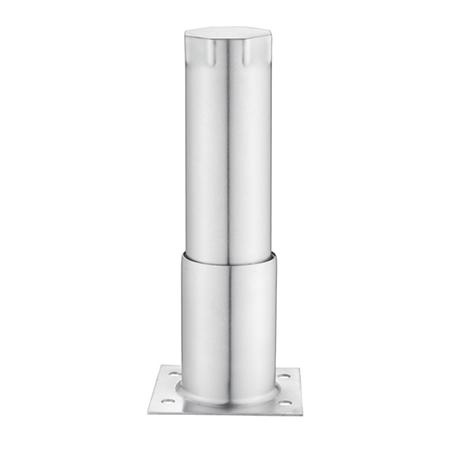

The equipment legs are used with two tubes of different diameters, such as 63+56mm round tubing or 56+48mm round tubing. The foot of the equipment leg can be flexibly designed with a stainless steel octagonal foot, 3mm/8mm plastic octagon foot and plastic round foot.

The standard adjustment range is commonly 50mm or 60mm. The product height can be minimized to 60mm. The static load rating is 600kgs.
